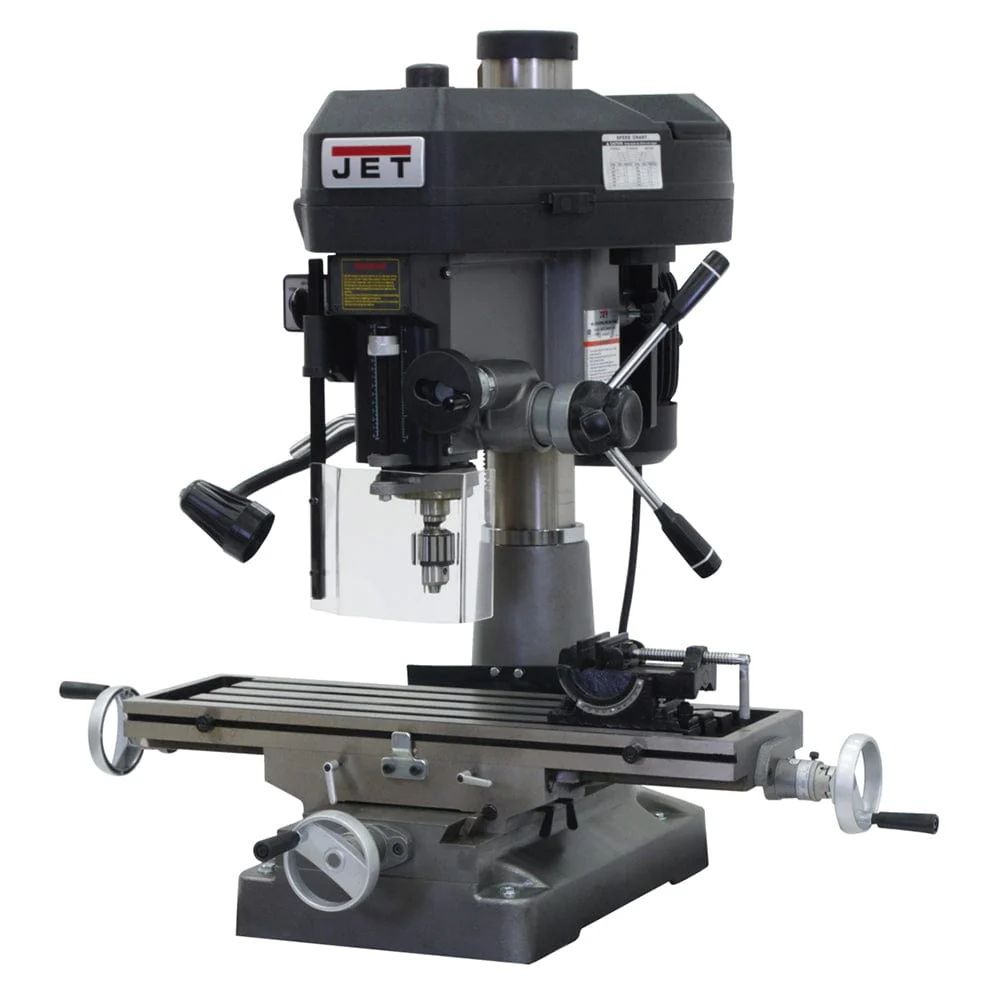

-70%JMD-18 Mill/Drill With R-8 Taper - 115V - 1 Ph—
$3,483.89
$1,045.17The Story
The JMD Milling Drilling Machine offers the perfect balance of flexibility and efficiency, making it a lighter, more versatile alternative to traditional milling machines. Combining the functionality of a belt-driven drill press with the dual coordinate capabilities of a milling machine’s table, it provides precise control for a variety of tasks. A locking collet ensures the cutting tool stays securely in place, even when faced with lateral forces against the bit. Designed with space-saving in mind, the JMD Milling Drilling Machine is affordable, compact, and delivers excellent light machining capabilities for a wide range of applications.
Features:
- 1/2” Drill chuck, chuck arbor
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
- Easy to read internal depth gauge
- Forward and Reverse Switch
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- One-piece cast iron column for added support
- Positive quick-stop knob and easy to read internal depth gauge
- UL Listed
- Base Dimensions:15-3/4” x 23”-3/4”
- Column Diameter: 4-1/2”
- Face Mill Capacity: 3”
- Max Distance Spindle to Table: 17-1/2”
- Motor: 2 HP - 115/230V - 1 Ph
- Number of Spindle Speeds: 12
- Overall Dimensions: 47” x 40” x 51”
- Quill Diameter: 3”
- Range of Spindle Speeds: 3,000 RPM
- Spindle Taper: R-8”
- Spindle Travel: 5”
- Swing: 15-7/8”
- T-Slot Centers: 1-13/16”
- T-Slots Number and Size: 4 and 5/8”
- Table Longitudinal Travel: 20-1/2”
- Table Size: 9-1/2” x 32-1/4”
- Warranty: 2 Year
