The Story

The Kreg Cabinet Hardware Jig Pro XL is a drill guide jig designed to deliver repeatable, accurate hole placement for cabinet pulls and knobs on drawers and doors. Built for woodworkers installing modern hardware on larger cabinetry, it removes layout guesswork while supporting extra‑large pull spacing up to 38" center‑to‑center.

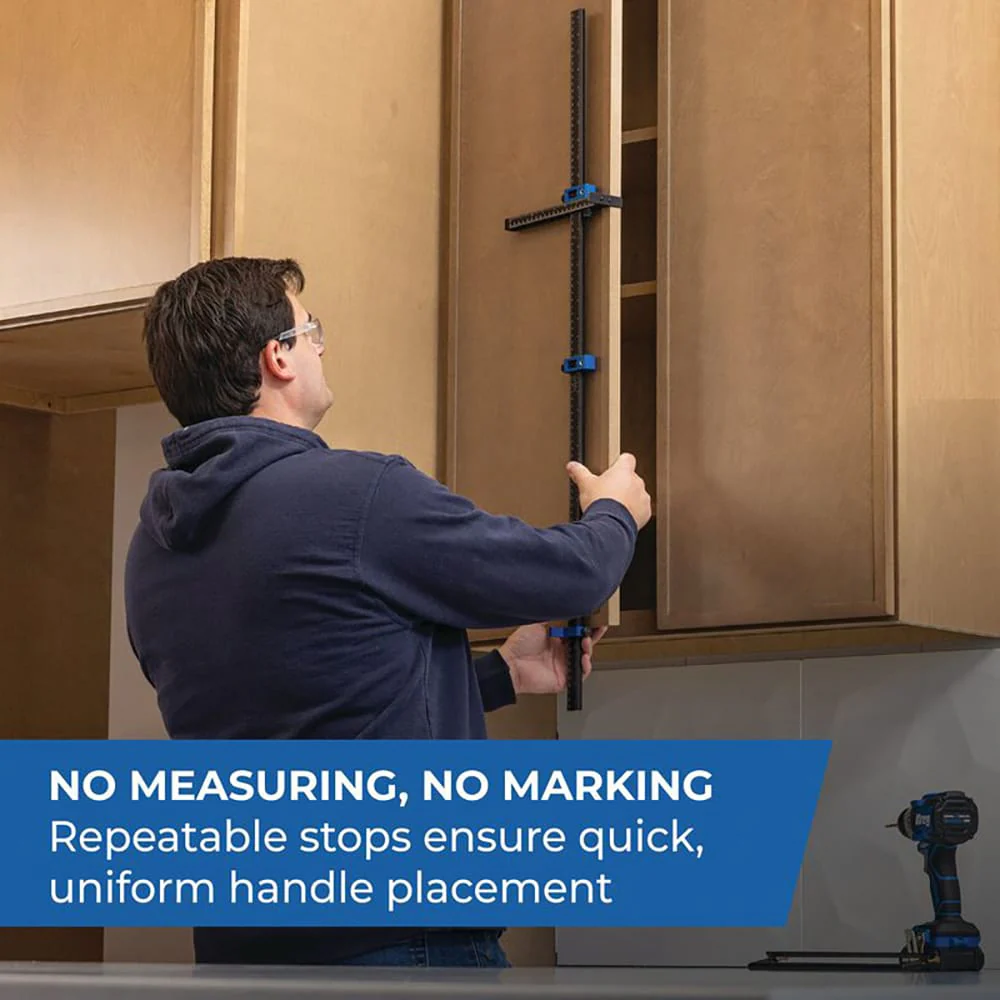

The Pro XL format provides extended reach and stable referencing when working on wide drawers and tall cabinet doors. Adjustable guides lock in position to maintain consistent spacing from edge to edge, including extra‑long pulls that exceed standard hardware layouts. By registering directly off the workpiece, the jig keeps hole placement predictable across full cabinet runs without re‑measuring or recalculating.

Note: Required 3/16" (5 mm) drill bit is not included.

Features:

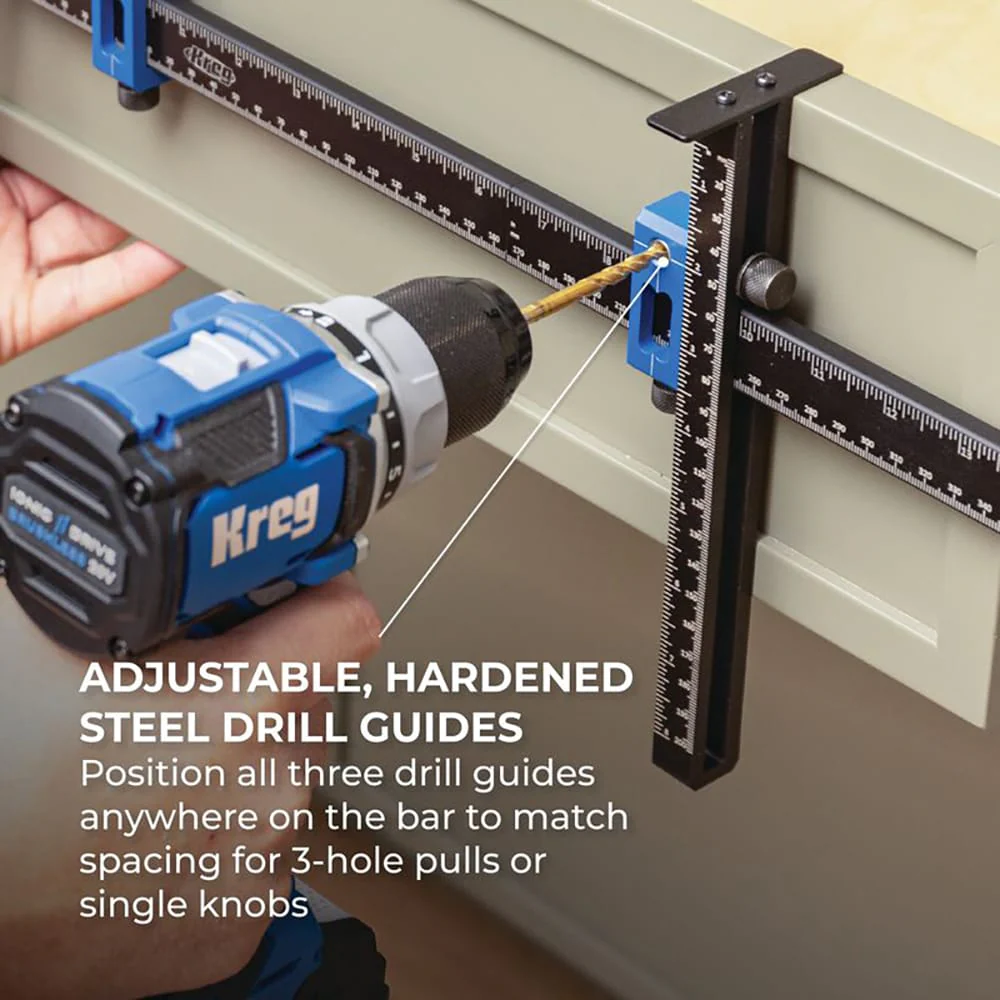

Adjustable drill guides for consistent hardware hole spacing

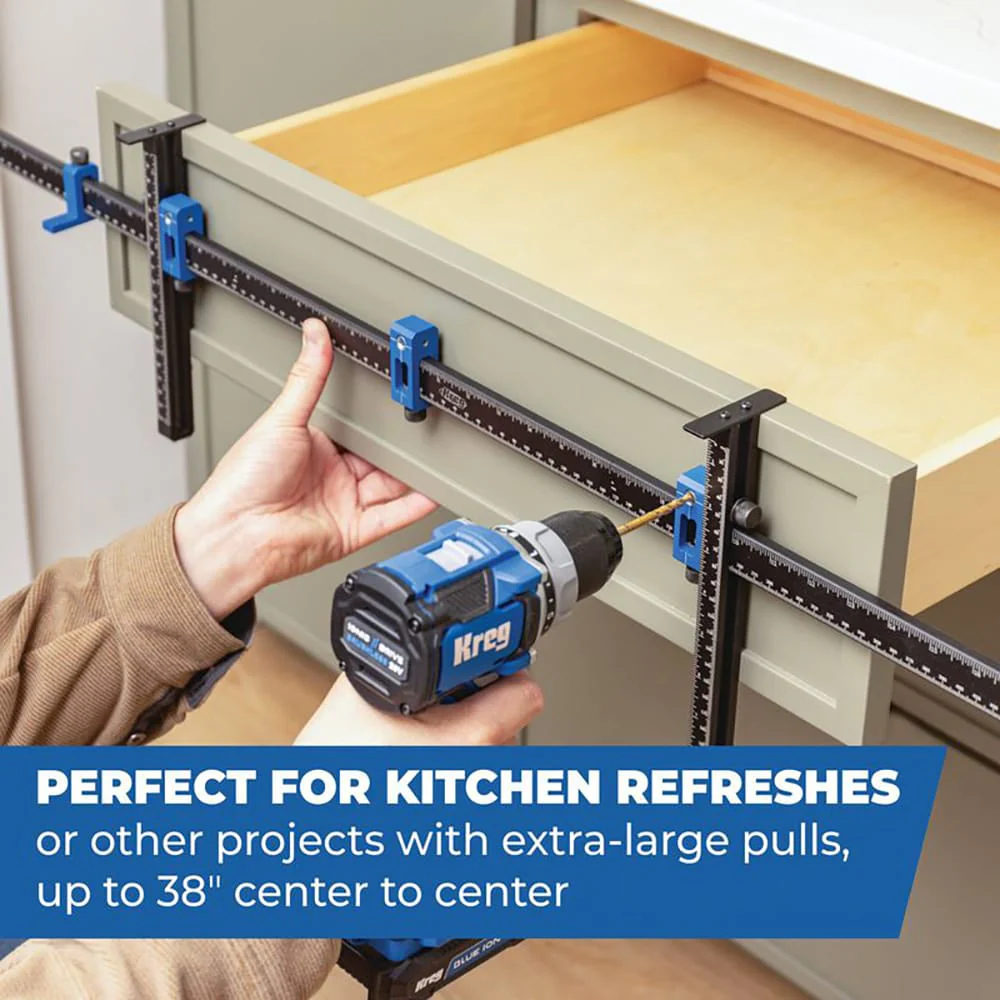

Extra‑large capacity for pulls with center‑to‑center spacing up to 38"
Modular design allows you to work on smaller pulls and knobs without using the entire jig

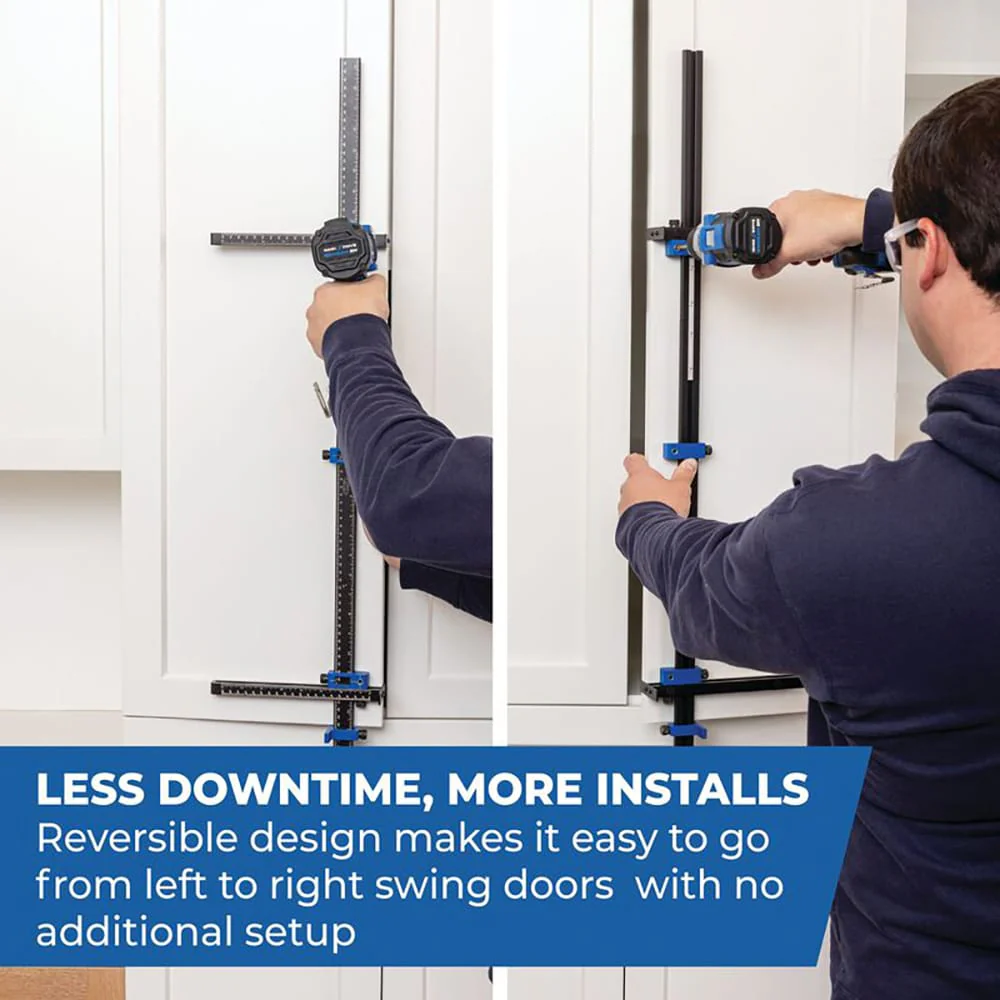

Reversible for right and left swing doors without readjusting, measuring or marking

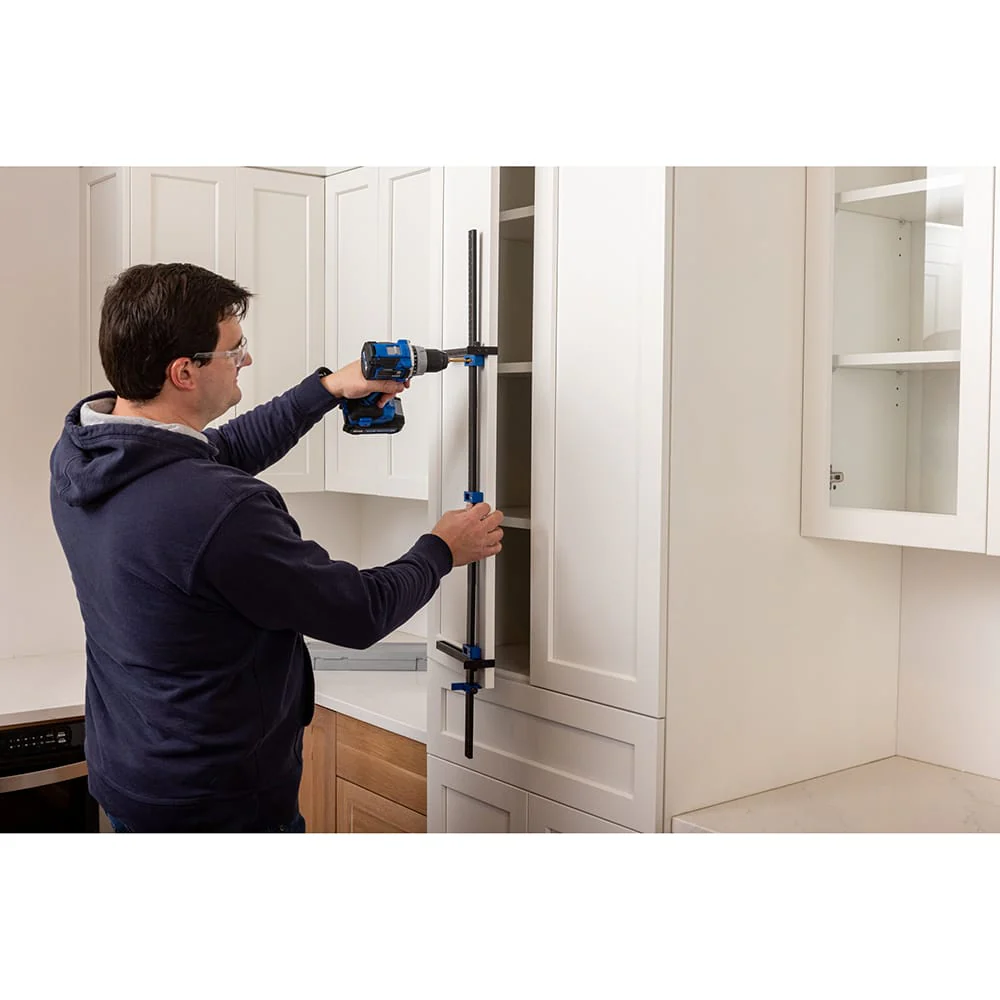

Extended reach design supports wide drawers and tall cabinet doors

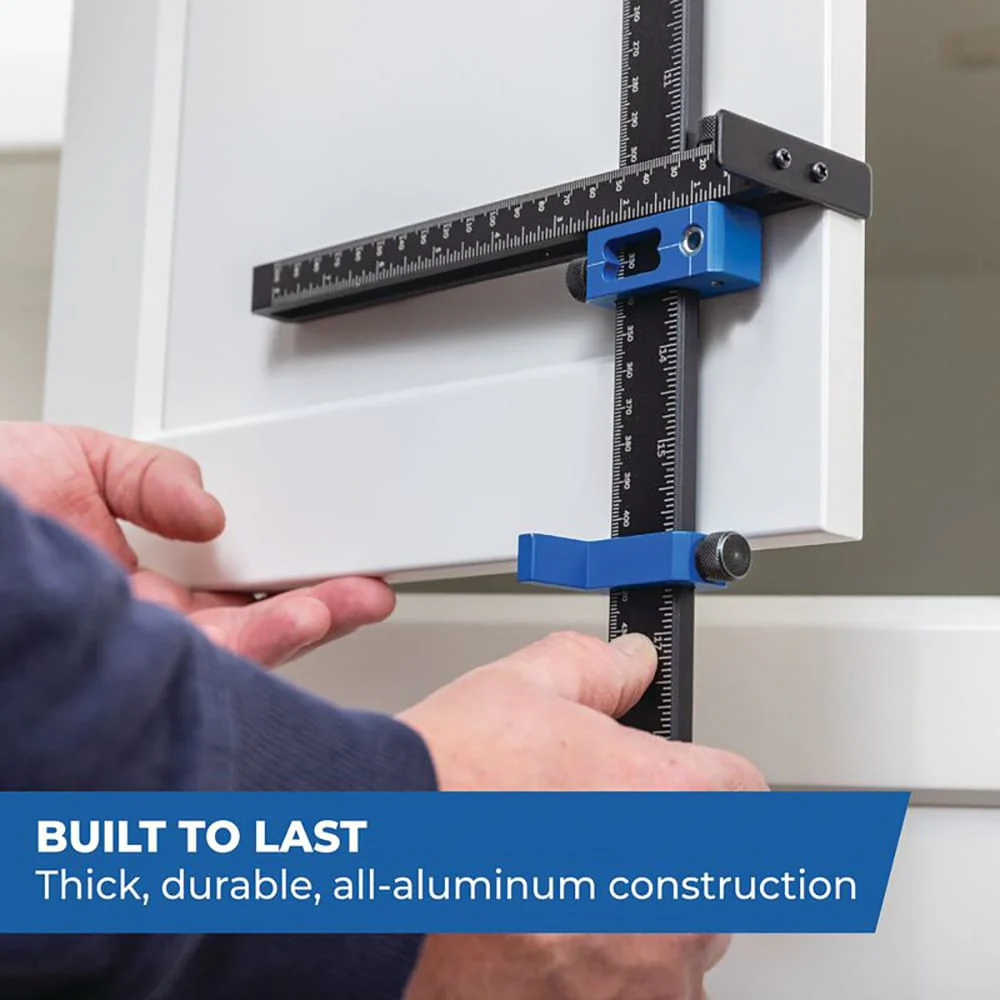

Rigid body maintains alignment during drilling

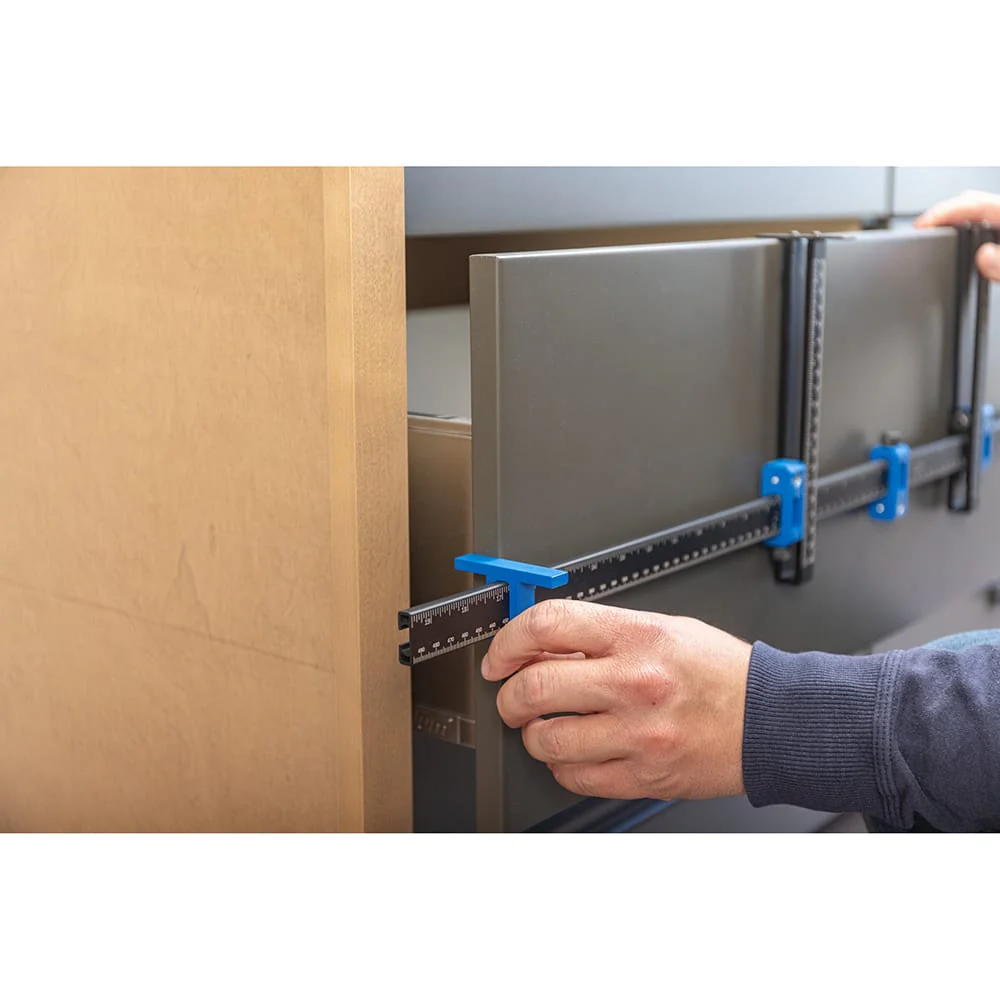

Registers directly off drawer fronts and doors
3-year limited warranty

Specifications:

Application: Cabinet Pulls and Knobs
Maximum Pull Spacing: 38" center‑to‑center
Drawer Height Capacity: Up to 16"

What’s Included:

(1) Center horizontal bar
(1) Left horizontal bar
(1) Right horizontal bar
(3) Drill guides
(1) Left vertical bar
(1) Right vertical bar
(1) Reversible end stop
(1) Hard case
(2) Connector bars w/screws
